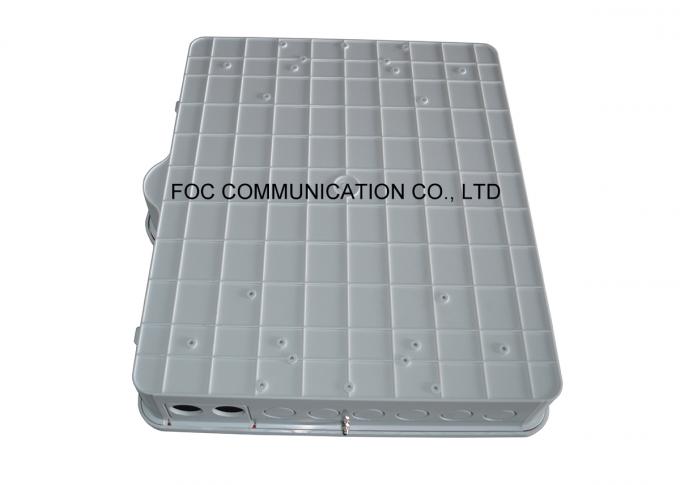

Anti - UV / Waterproof Outdoor Distribution Box For Data Communications Networks

Anti - UV / Waterproof Outdoor Distribution Box For Data Communications Networks

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: OTB-S96-A

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Get Best Price Contact Now

Detail Information

Mount Type: Wall Mount, Pole Mount Material: ABS Plastic
Port: 12, 24, 32, 48, 72, 96 Port Connector: SC, FC, LC, ST, E2000
High Light:

cable termination box

,

network termination box

Product Description

PLC Splitter Termination Box 96 Core For FTTX Anti-UV and waterproof



PLC splitter termination box is used a termination point for the feeder cable to connect with drop cable in FTTX communication network system.The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.



The wall mount optical termination box is based on a modular design philosophy, fully considering various applications and combining different requirements. The optical termination box is designed to provide ample fiber optic cable routing, storage of fibers, split fiber, manage pigtails and patchcords.





PLC Splitter termination box is widely used in FTTH access network, telecommunication networks, CATV networks, communications and local area networks.



We offer 2 ports, 4 ports, 6 ports, 8 ports,12 ports, 24 ports, 48 ports, 96 ports fiber distribution box, they are made of ABS plastic.



Features



Industry Standard user interface,made of high impact plastic,
Can be isntalled with 1:4, 1:8, 1:16, 1:32, 1:64 PLC splitters,
Anti-UV and waterproof,
Up to 96 FTTH ports,
1~3 inlet ports and 96 outlet ports,
Wall mounting and pole mounting are avalaible.



Application



Data communications Networks

Local Area Networks, Wide Area Networks

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks



Specifications

Working Temperature: -40℃~+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)



Model Adapter port

Dimension(mm)

W*H*D

Splitter space
OTB-S96 96 397 ×467×125 No
OTB-S96-A 72 Max. 8pcs 1:8 or 1pc 1:64 box type splitter
OTB-S96-B 72
