• Fiber Optical Cable Distribution Box 12 Core For Splitter Installation
Fiber Optical Cable Distribution Box 12 Core For Splitter Installation

Fiber Optical Cable Distribution Box 12 Core For Splitter Installation

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: OTB-0212-A

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Get Best Price Contact Now

Detail Information

Mount Type: Wall Mount, Pole Mount Material: ABS Plastic
Port: 12, 24, 32, 48, 72, 96 Port Connector: SC, FC, LC, ST, E2000
High Light:

cable termination box

,

network termination box

Product Description

Fiber Distribution Box 12 Core For Fiber Splicing Splitting And Distribution



Fiber optic drop cable distribution box is used as a termination point for the feeder cable to connect with drop cable. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



This 12 core fiber optic terminal box can load 1pcs of PLC splitter 1:8 steel tube type and can be loaded with 12pcs of SC simplex adapters. All the components can be pre-assembled and easy to be installed together.  And it is a perfect solution for optical fiber installations and management.



Features

Material: PP plastic, water-proof IP65.

Standard size, light weight and reasonable enclosed structure.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc.

Cable, pigtails, patch cords are running through its own path without disturbing each other.

Suitable for SC, LC, FC, ST ... etc. adapters and can load PLC splitter.

Distribution panel can be flipped up, easy for maintenance and installation.

Indoor & outdoor wall mounted, pole mounted application.



Application

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV



Specifications

Working Temperature: -40℃~+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)



Description OTB-0212-A
Dimensions(W×D×H) 209.5x260.5x95mm
Splice capacity Max. 12 cores
Cable port In: 2-port/Out:12-port
Cable dia. For FTTH drop cable
Color Ivory/White
Main body material Plastic(PP)
Installation type Wall mounting and pole mounting

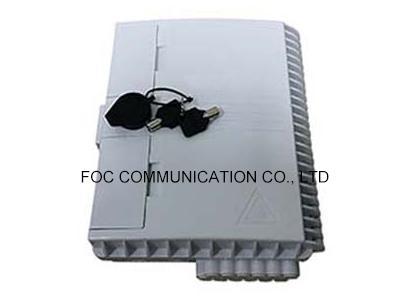

Fiber Optical Cable Distribution Box 12 Core For Splitter Installation 0



Fiber Optic Terminal Box, Optical Termination Box, Plastic Terminal Box
