• LC Duplex Fiber Optic Adapter , Metal Zirconia Ceramic Sleeve Optical Cable Adapter
LC Duplex Fiber Optic Adapter , Metal Zirconia Ceramic Sleeve Optical Cable Adapter

LC Duplex Fiber Optic Adapter , Metal Zirconia Ceramic Sleeve Optical Cable Adapter

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: LC Metal Fiber Optic Adapter

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 50PCS/Blister Box
Supply Ability: 90000PCS/Month
Get Best Price Contact Now

Detail Information

Sleeve Material: Bronze Sleeve, Zirconia Ceramic Sleeve Adapter: FC, SC, ST, LC, MTRJ, MPO, E2000
Cores: Simplex, Duplex, Quad Material: Metal, Plastic
Cap Color: White, Red Mode: Singlemode, Multimode
High Light:

fiber optic adaptor

,

fiber optic connector adapters

Product Description

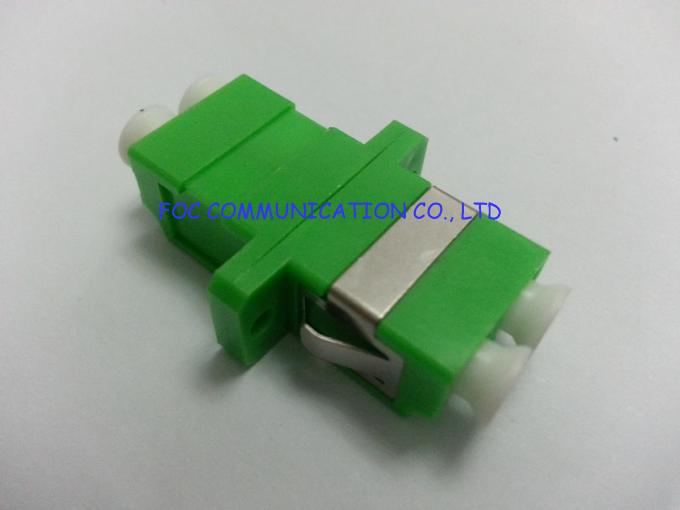

LC Duplex Fiber Optic Adapter , Metal Zirconia Ceramic Sleeve Optical Cable Adapter

FOC COMMUNICATION CO., LTD offers an LC to LC fiber optic adapter for networking applications. The LC adapter, also known as an LC coupler, is made with female duplex LC connections on both sides to connect two duplex LC patch cords together. It has stainless steel mounting clips, allowing it to be easily snapped into rectangular cut outs for simplex SC mount. The fiber optic adapter is made from lightweight, yet durable, UL 94V-0 plastic. The fiber optic LC coupler is built with a zirconia ceramic sleeve for precision alignment and longevity, and it can be used for up to 500 matings. The LC coupler comes with protective caps to prevent dust and debris from entering. It is RoHS compliant.



Features

Used for connecting and coupling of the fiber optical connector

Low insertion loss and high return loss

High precision mechanical dimensions

High performance and reliability



Applications

Optical Distribution Frame
Fiber Optic Instruments

Fiber Optic Communication System Interface
Fiber Instrument

Fiber LAN, Wide Area Networks



Specifications

Type FC, SC, ST, LC, E2000,MU, MTRJ, MPO
Insertion Loss ≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.2dB
Sleeve Material ceramic Zirconia
Operating Temperature -25℃~+70℃
Storage Temperature -40℃~+85℃



LC Duplex Fiber Optic Adapter , Metal Zirconia Ceramic Sleeve Optical Cable Adapter 0

Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
